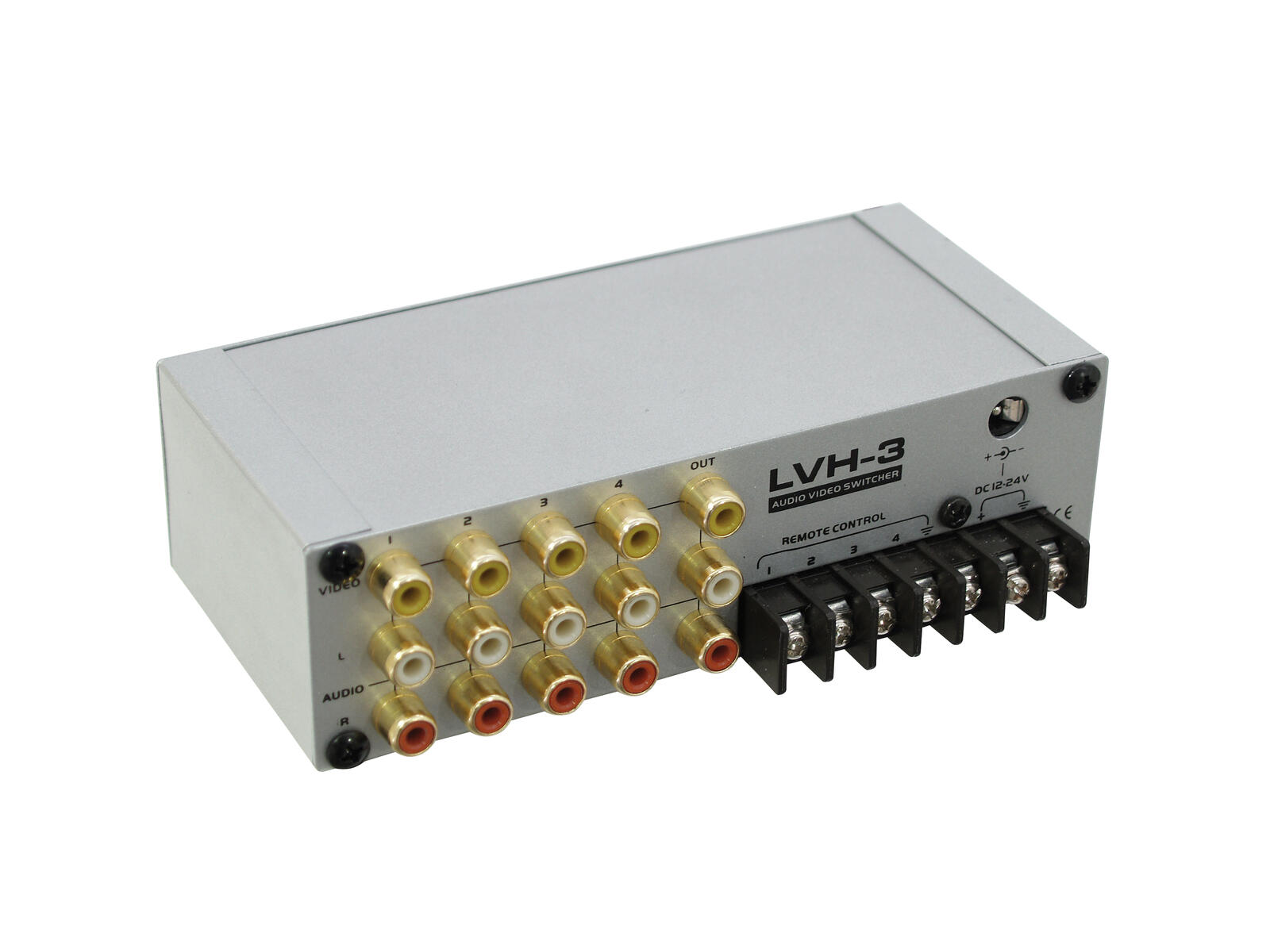

Manual AV switch 4:1
| Power supply: | 12-24 V DC 100 mA |
| Power connection: | Mains input via screw terminal Mains input via Coaxial power connector (M) |
| Frequency range: | 10 - 10000000 Hz |
| S/N ratio: | >-95 dB |
| THD: | <0,01 % at 1 kHz |
| Dimensions: | Width: 14,6 cm Depth: 9 cm Height: 4,2 cm |
| Weight: | 440 g |
| Video: | |
| 4 x inputs: | 1 Vpp/ 75 ohms, composite RCA |
| 1 x outputs: | 1 Vpp/ 75 ohms, composite RCA |
| Off attenuation: | >78 dB |
| Differential gain: | 0.1% |
| Differential phase: | <0.3º |
| Audio: | |
| 4 x inputs: | 10 kohms, stereo RCA |
| 1 x output: | 75 ohms, stereo RCA |
| Gain: | nominal 0 dB |
| Input level: | -10 dBV nominal |
| Headroom: | >20 dB/ -10 dBV |
| Off attenuation | >74 dB |
| Crosstalk: | blow noise floor (inputs terminated) |
