pc control software 512
LED PC-Control is the ideal DMX512 software for all DJ and Architectural applications or small/medium-sized projects. It manages all LED technology-based equipment and can control any type of standard DMX appliance. The software is the most user friendly and affordable solution for DMX lighting control.
Lighting control software with USB interface to create professional shows
- Supports Windows 7+10, Mac OS X, Linux and Android
- Graphic and user-friendly live board for touchscreens and smartphones
- Remotely trigger scenes and programs via WIFI with your smartphone or instantly change RGB colors of your LED lights and much more
- Automatic program generator with X-Pan, Y-Tilt and RGB effects
- Graphic patch editor for DMX fixture addressing
- Quick fixture profile editor with 3000 files (libraries) included
- Advanced Matrix editor to allow all LED configurations
- Multiple menu languages (e.g. French, English, German)
- Full RGB (W/A) color and dimmer management and rendering
- Graphic 2D edition of fixtures
- Up to 5120 channels with several plugged interfaces
- Colors, dimmer, speed, black out and pause can be managed in live mode
- Fade-in time between programs and scenes
- Multiple program triggers
- DMX output speed signal can be configured for perfect DMX line stability and full compatibility with any electronic fixtures (Mab, Break, Delay, frequency 1 to 45 Hz)

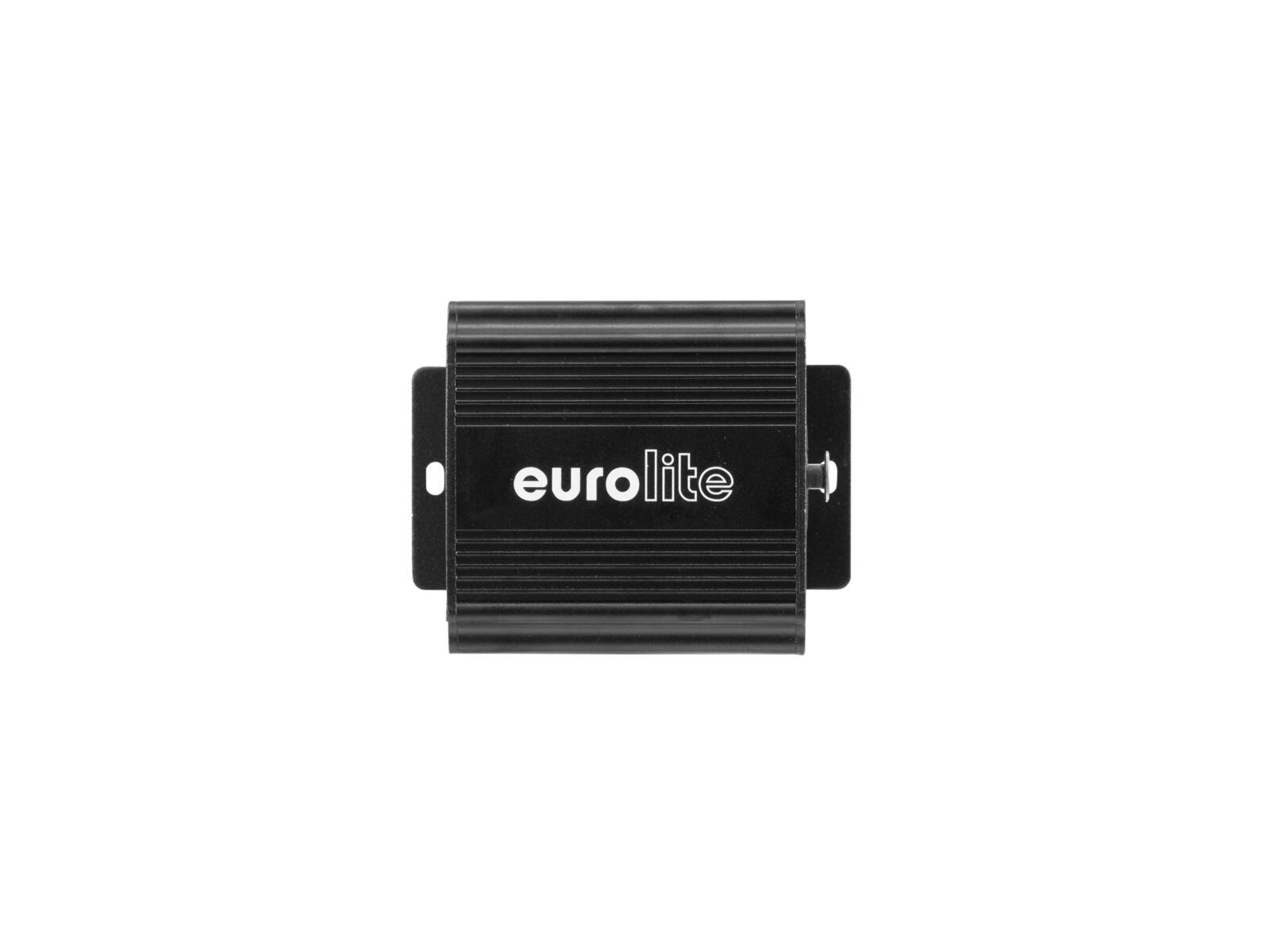

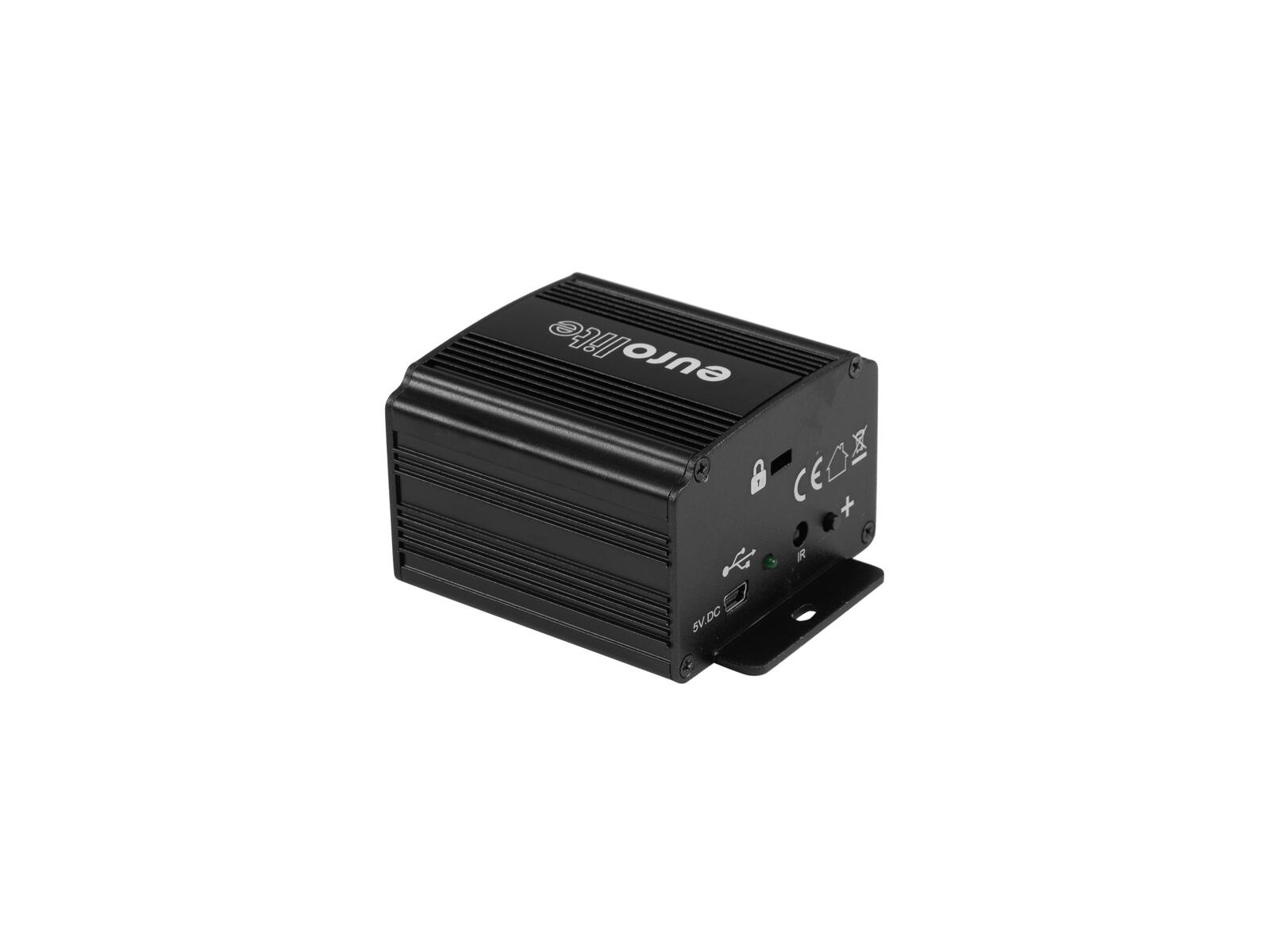

- Durable aluminum housing with mounting flange
- Can transmit up to 512 DMX channels
- Controlling by DMX";" SmartBoard DMX App
- The device can be connected via USB to the PC in connection with LED PC-Control 512
- Compatible with Win XP, Win Vista, Win 7, OS X 10,3 or better
- For further information about this product, please refer to the Data Sheet under ""Downloads""
Package contents
- 1 x device, 1 x external mains adapter, 1 x uSB cable, 1 x cD, 1 x remote control, 1 x battery
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 500 mA |
| Power consumption: | 1 W |
| Power connection: | Mains input via micro USB (F) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 512 |

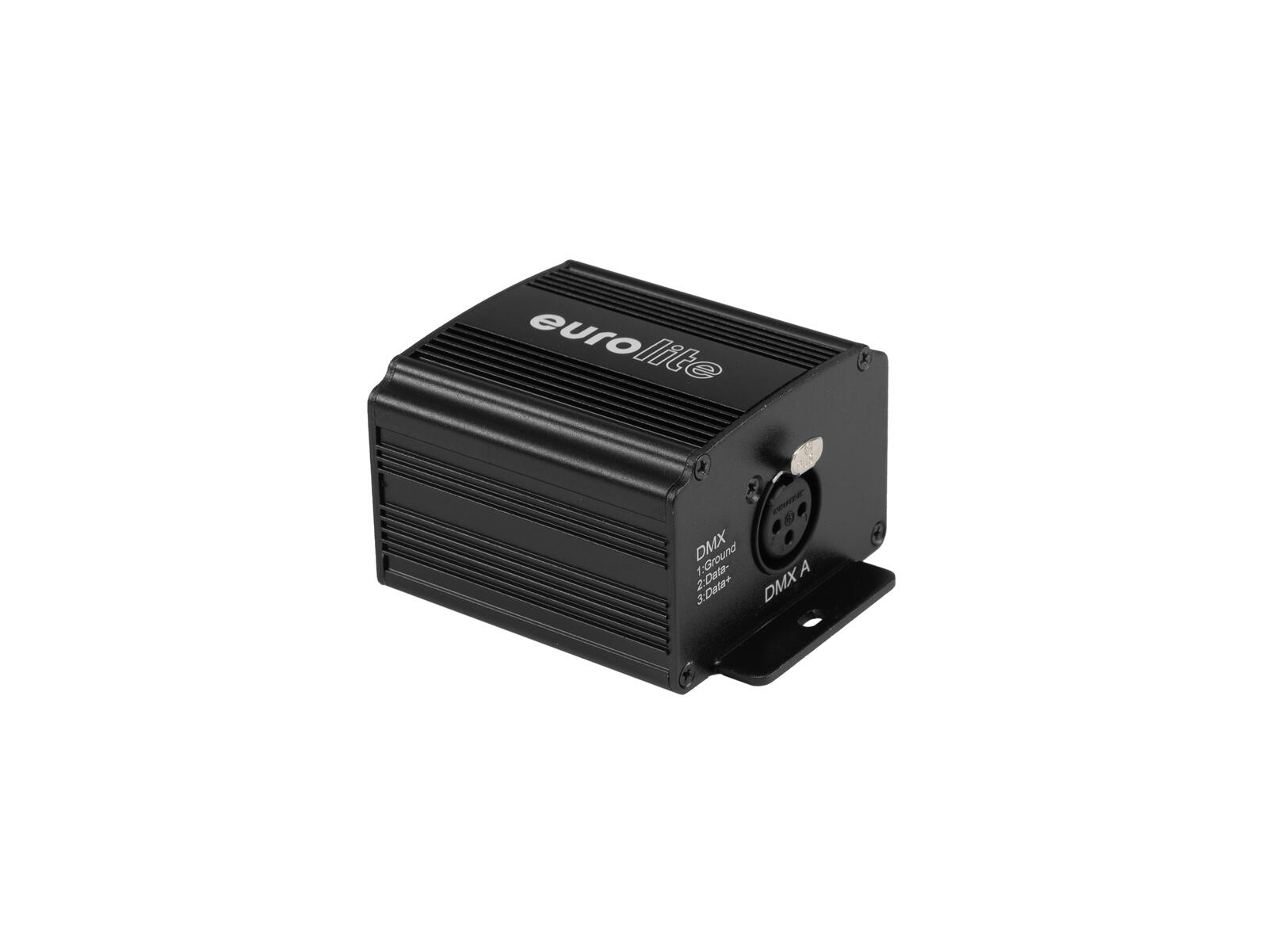

| DMX output: | 3-pin XLR (F) mounting version |
| Control: | DMX"; SmartBoard DMX App |

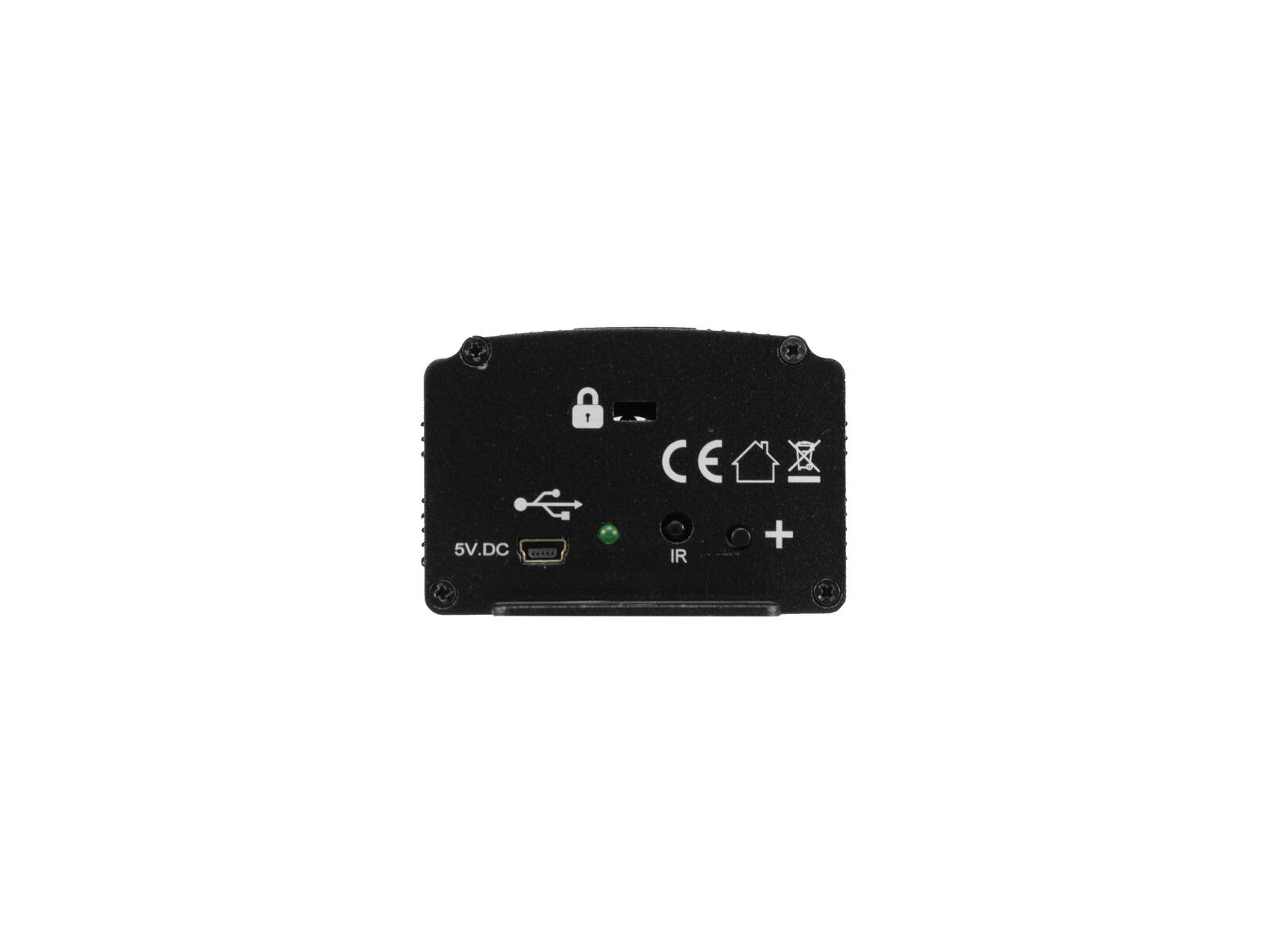

| USB port: | USB 2.0, Typ Mini USB (F) mounting version |
| Color: | Black |
| PC connect: | LED PC-Control 512 via USB |
| Dimensions: | Width: 7 cm Depth: 9 cm Height: 4,5 cm |
| Weight: | 220 g |
| Operating system: | Win XP, Win Vista, Win 7, OS X 10,3 or better |
